Build an IoT SMS Gateway using ESP32 and Cloudflare Workers

After my two backup phones died at the worst possible time, I decided to build something more reliable. Instead of buying another phone that might die, I grabbed a TTGO T-Call board from my drawer and spent a weekend building Lghnay - a dedicated SMS gateway that forwards messages to the cloud.

What is Lghnay

Lghnay (Arabic: لغناي) is a complete IoT solution for forwarding SMS messages to the cloud. The system captures incoming SMS messages using an ESP32 module with an integrated SIM800 modem, forwards them to a serverless backend, stores them in a database, and provides real-time email notifications.

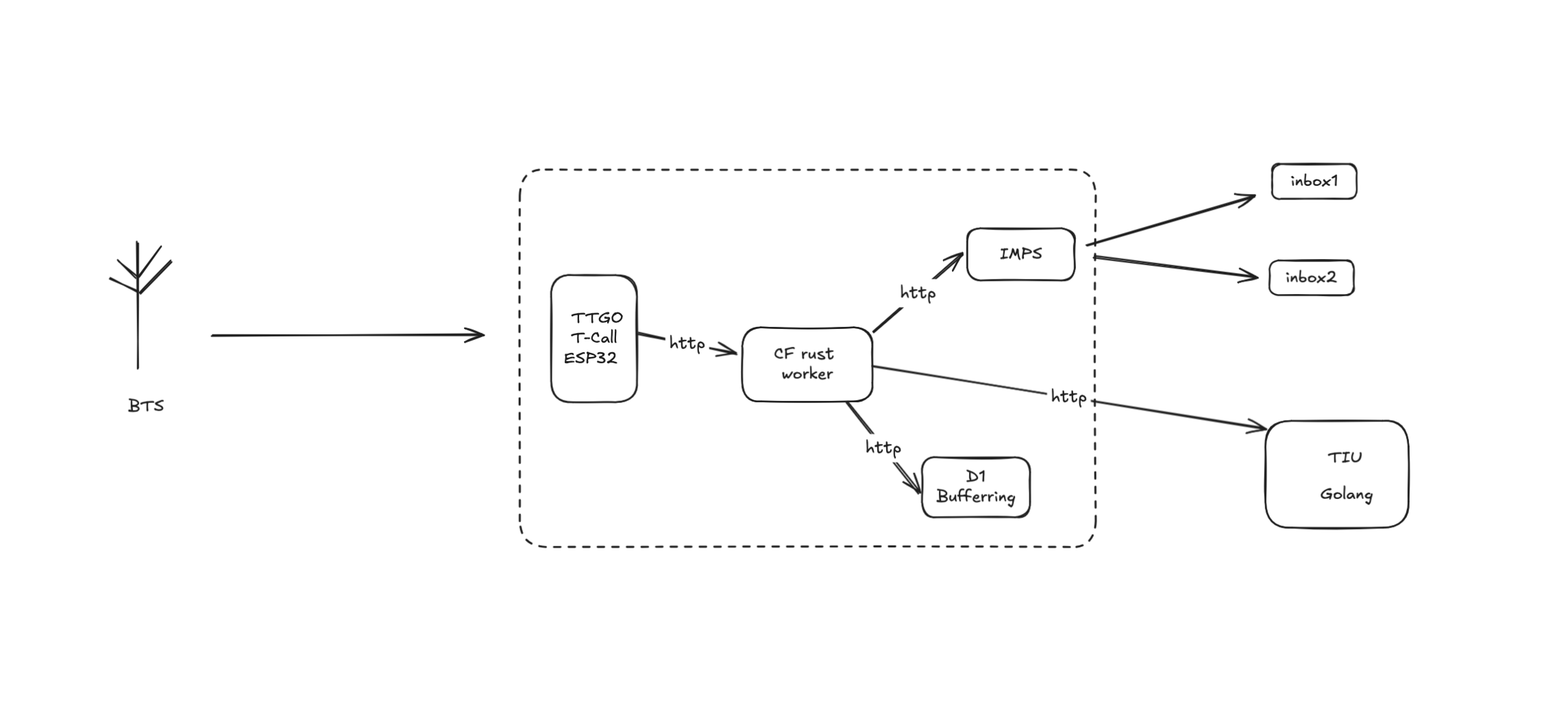

The project consists of three interconnected components:

Firmware (C++/Arduino): Runs on the TTGO T-Call ESP32 board
Worker (Rust): Cloudflare Workers-based API for processing SMS data
TUI Client (Go): Terminal interface for viewing messages

Use Cases

This system is perfect for:

📲 Remote SMS monitoring and logging
🔐 Two-factor authentication code forwarding
🚨 Alert system integration
🌐 IoT communication gateway

Hardware Requirements

Before we start, you'll need:

TTGO T-Call V1.4 (ESP32 with SIM800C/L modem)
SIM card with SMS capability
USB cable for programming and power
WiFi network for internet connectivity

Part 1: Setting Up the Firmware

Install Dependencies

Install the following libraries in your Arduino IDE:

TinyGsmClient - For SIM800 modem communication
WiFi (ESP32 standard library)
HTTPClient (ESP32 standard library)
Wire (I2C library for IP5306)

Create Configuration File

Create a config.h file in your firmware directory:

// config.h
#define SerialMon Serial
#define SerialAT Serial1

// IP5306 Power Management
#define IP5306_ADDR 0x75
#define IP5306_REG_SYS_CTL0 0x00

// Modem GPIO Pins
#define MODEM_RST 5
#define MODEM_PWKEY 4
#define MODEM_POWER_ON 23
#define MODEM_TX 27
#define MODEM_RX 26
#define I2C_SDA 21
#define I2C_SCL 22

// WiFi Credentials
const char* ssid = "Your_WiFi_SSID";
const char* password = "Your_WiFi_Password";

// Server Configuration
const char* serverURL = "https://your-worker-url/set";
const char* apikey = "Your_Auth_Token_Reversed";
const char* simPIN = ""; // Leave empty if no PIN required

Key Features

The firmware includes:

⚡ Power management with IP5306 boost control
📡 Dual connectivity (WiFi + GSM/GPRS)
📨 Real-time SMS reception and parsing
🔒 Secure HTTPS data transmission
🔄 Automatic reconnection handling

Upload the Firmware

Connect your TTGO T-Call via USB, select ESP32 Dev Module as your board, set upload speed to 115200, and upload the firmware.

Part 2: Deploying the Cloudflare Worker

The serverless backend is built with Rust and runs on Cloudflare Workers, providing scalability and global distribution.

Prerequisites

You'll need:

Cloudflare Workers account
Wrangler CLI installed
Resend API account for email notifications

Configure Environment Variables

Set up the following in your Cloudflare Worker dashboard:

Here is the table converted into a list format:

AUTH_KEY: (Secret) The un-reversed authentication string used for the custom "Cisab" scheme.
RESEND_API_KEY: (Secret) The API key for the Resend email service, used for sending notifications.
DB: (D1 Binding) The D1 Database binding name, linking the Worker to the message storage.
FROM_EMAIL: (Variable) The sender email address for the notifications.
TO_EMAIL: (Variable) The recipient email address for receiving notifications of new SMS messages.

Create Database

Create a D1 database and run this SQL:

CREATE TABLE messages (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  sender TEXT NOT NULL,
  sms TEXT NOT NULL,
  ts TEXT NOT NULL
);

Deploy the Worker

Navigate to the worker directory and deploy:

cd worker
wrangler publish

Understanding "Cisab" Authentication

The project uses a custom authentication scheme called "Cisab" (literally "Basic" spelled backwards). Instead of standard Basic auth, it uses a reversed token:

Configure a secret AUTH_KEY (e.g., "mySecretKey123")
Reverse this key: "321yeKterceSym"
Send it in the Authorization header:

Authorization: Cisab 321yeKterceSym

The worker reverses it back and validates against the stored AUTH_KEY.

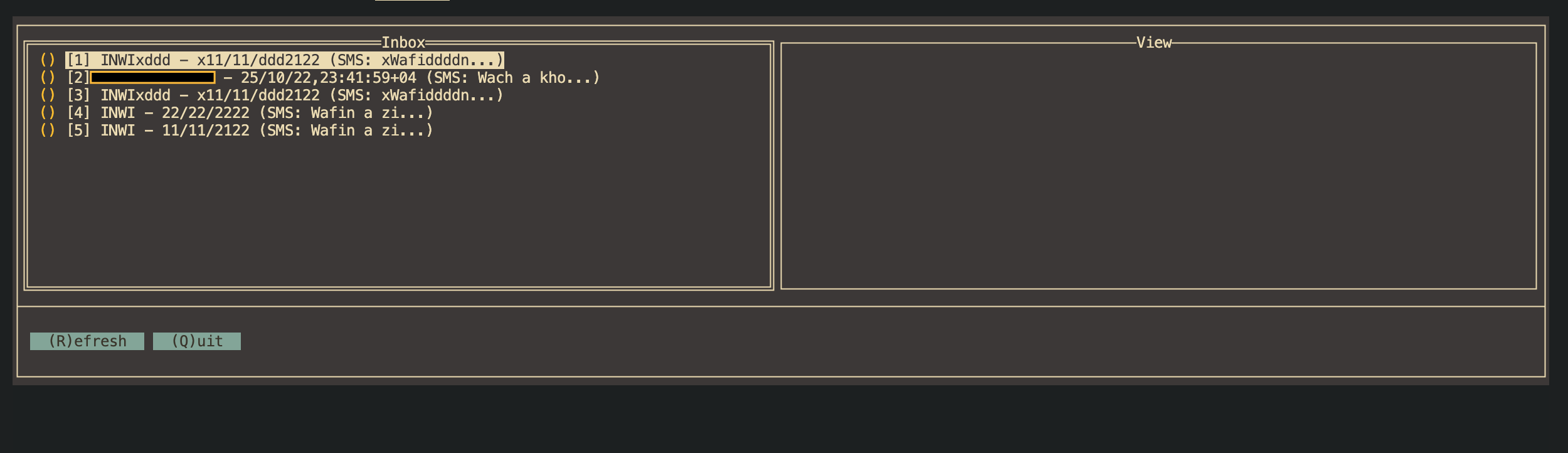

Part 3: Building the TUI Client

The terminal user interface is built with Go and provides an easy way to view and manage stored messages.

Prerequisites

Install Go 1.20 or higher.

Run the Client

Set environment variables and run:

export API_URL=https://your-worker-url
export TOKEN=your_reversed_auth_token
go run .

Or build and run:

go build -o ./bin/lghnay-tui
API_URL=https://your-worker-url TOKEN=your_token ./bin/lghnay-tui

Features

🖥️ Clean terminal user interface
🔐 Secure API authentication
📋 Message listing and viewing
🎨 Easy-to-use command-line interface

API Endpoints

The Worker provides the following REST endpoints:

Health Check

GET /health

Get All Messages

GET /get

Returns all stored SMS messages (newest first).

Get Specific Message

GET /get/:id

Returns a message by ID.

Store New Message

POST /set
Content-Type: application/json

{
  "sender": "+1234567890",
  "sms": "Message content",
  "ts": "2025-10-24 12:00:00"
}

Stores a new SMS and triggers email notification.

Testing the System

Once everything is set up:

The ESP32 will automatically connect to WiFi and initialize the modem
Send an SMS to your SIM card
The firmware captures and forwards it to the Worker
The Worker stores it in D1 and sends an email notification
View messages using the TUI client

Why Build This?

Sometimes the best solutions come from the most annoying problems. Rather than relying on backup phones that can die unexpectedly, this system provides:

No screens to crack
No batteries to bloat
No operating systems to update
Just a simple, purpose-built device that does one thing well

Conclusion

Lghnay demonstrates how IoT, serverless computing, and simple terminal interfaces can work together to solve real-world problems. The combination of ESP32 for hardware interfacing, Cloudflare Workers for scalable backend processing, and Go for a clean user interface creates a robust and maintainable system.

The project is open source and available on GitHub. Contributions are welcome!

What's Next?

Possible improvements include:

Adding support for sending SMS messages
Implementing message filtering and routing
Creating a web dashboard alongside the TUI
Adding support for multiple SIM cards

Have you built something similar? I'd love to hear about your IoT projects in the comments below!
